Hybrid(Transformer+CNN)-based Polyp Segmentation

1Mississippi State University

Demo

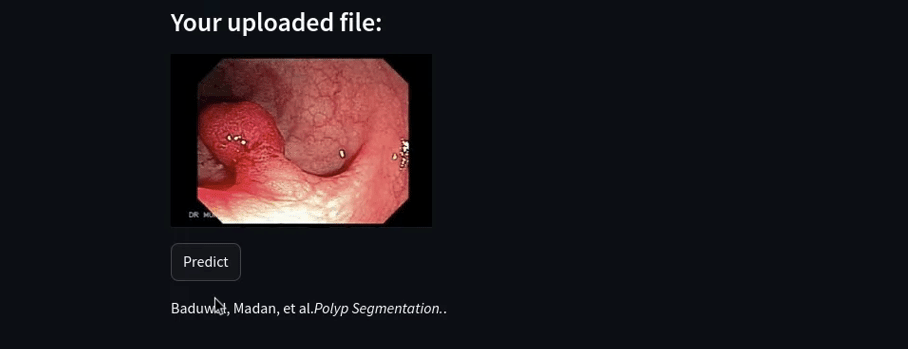

Demo GIF

Hybrid(Transformer+CNN) -based Polyp Segmentation

Abstract

Colonoscopy is still the main method of detection and segmentation of colonic polyps, and recent advancements in deep learning networks such as U-Net, ResUNet, Swin-UNet, and PraNet have made outstanding performance in polyp segmentation. Yet, the problem is extremely challenging due to high variation in size, shape, endoscopy types, lighting, imaging protocols, and ill-defined boundaries(fluid, folds) of the polyps, rendering accurate segmentation a challenging and problematic task. To address these critical challenges in polyp segmentation, we introduce a hybrid (Transformer + CNN) model that is crafted to enhance robustness against evolving polyp characteristics. Our hybrid architecture demonstrates superior performance over existing solutions, particularly in addressing two critical challenges: (1) accurate segmentation of polyps with ill-defined margins through boundary-aware attention mechanisms, and (2) robust feature extraction in the presence of common endoscopic artifacts including specular highlights, motion blur, and fluid occlusions. Quantitative evaluations reveal significant improvements in segmentation accuracy (Recall improved by 1.76%, i.e., 0.9555, accuracy improved by 0.07%, i.e., 0.9849) and artifact resilience compared to state-of-the-art polyp segmentation methods.

Comparison of publicly available polyp detection/segmentation datasets.
Dataset Name (Year, Country) Ground Truth Images Resolution
CVC-ColonDB (2013, Spain)1 Binary Mask 380 500×574
ETIS-LaribPolypDB (2014, France)2 Binary Mask 196 1225×966
CVC-ClinicDB (2015, Spain)3 Binary Mask 612 576×768
ASU-Mayo (2016, USA)4 Binary Mask + BBox 18,781 512×512
GI Lesions (2016, France)5 Annotated File + BBox 30 videos 768×576
EndoScene (2016)6 Binary Mask 912 224×224
CVC-ClinicVideoDB (2017)7 Binary Mask 11,954 frames 384×288
Kvasir-SEG (2019, Norway)8 Binary Mask + BBox 1,000 320×320
KvasirCapsule-SEG (2019, Norway)9 BBox 47,238 Varies
NBIPolyp-Ucdb (2019, Portugal)10 Binary Mask 86 576×720
WLPolyp-UCdb (2019, Portugal)10 Annotated File 3,040 726×576
KUMC (2020, Korea)11 BBox 4,856 224×224
SUN (2020, Japan)12 BBox 49,136 416×416
PICCOLO (2020, Spain)13 Binary Mask 3,433 854×480
CP-CHILD (2020, China)14 Annotated File 9,500 256×256
EDD2020 (2020, International)15 BBox + Binary Mask 386 videos Varies
HyperKvasir (2020, Norway)16 Binary Mask 10,662 224×224
Kvasir-Capsule (2021, Norway)17 BBox 47,238 Varies
LD Polyp Video (2021, China)18 BBox 40,187 frames 560×480
SUN-SEG (2022, Japan)19 Multiple types 158,690 416×416
PolypGen (2022, Multi-center)20 Binary Mask + BBox 6,282 Various

Architecture

Architecture Diagram

Results

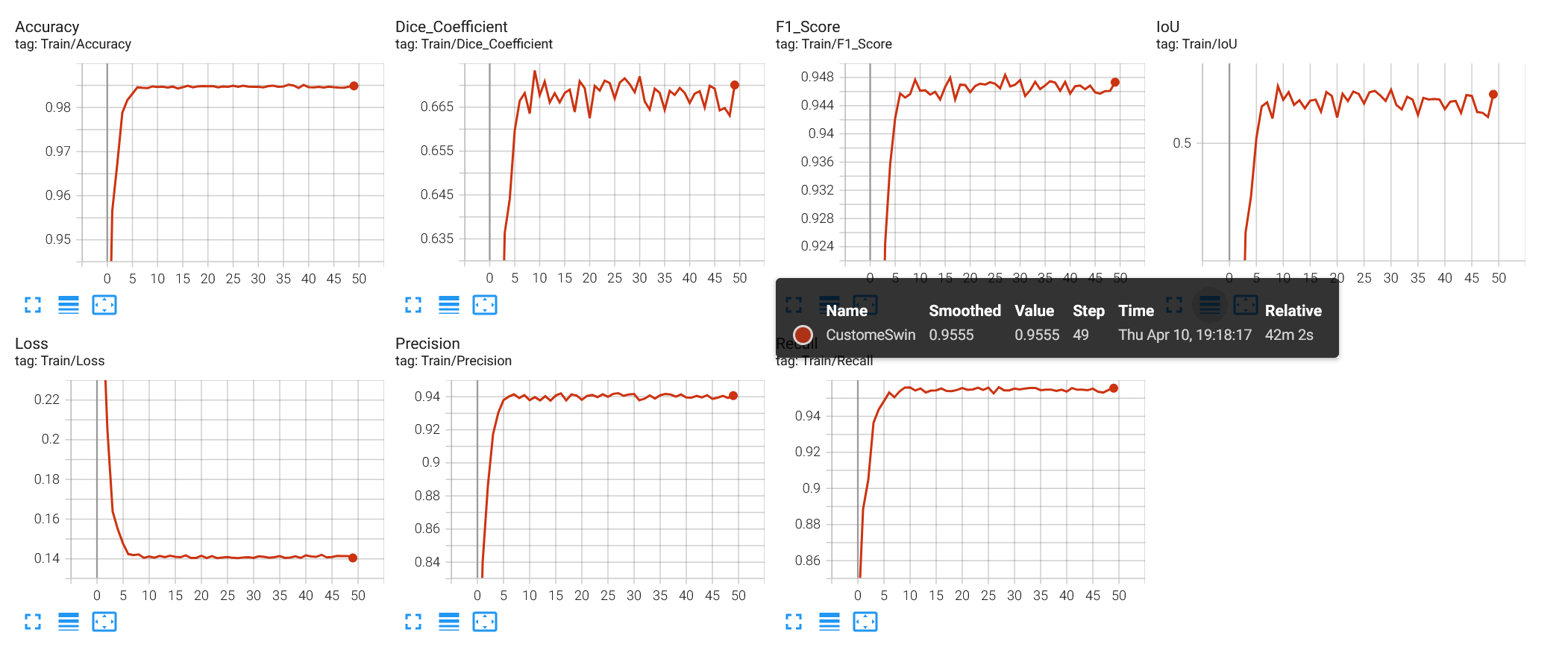

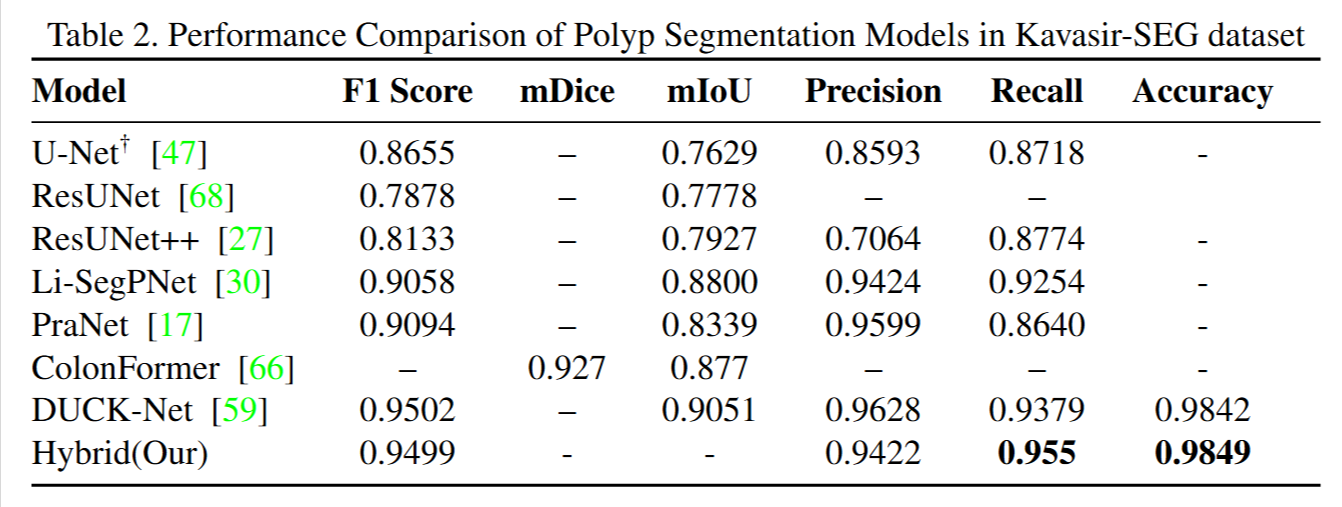

Result 1 Result 2

BibTeX

@article{baduwal2024,
  author    = {Madan Baduwal},
  title     = {Transformer-based Polyp Segmentation},
  journal   = {},
  year      = {},
}
